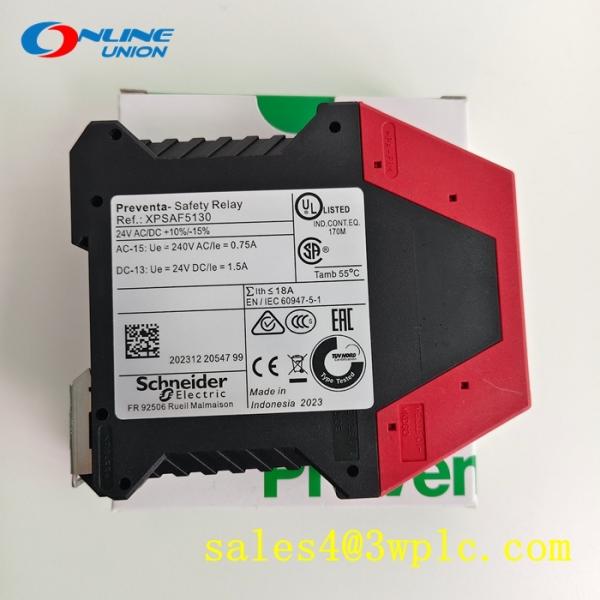

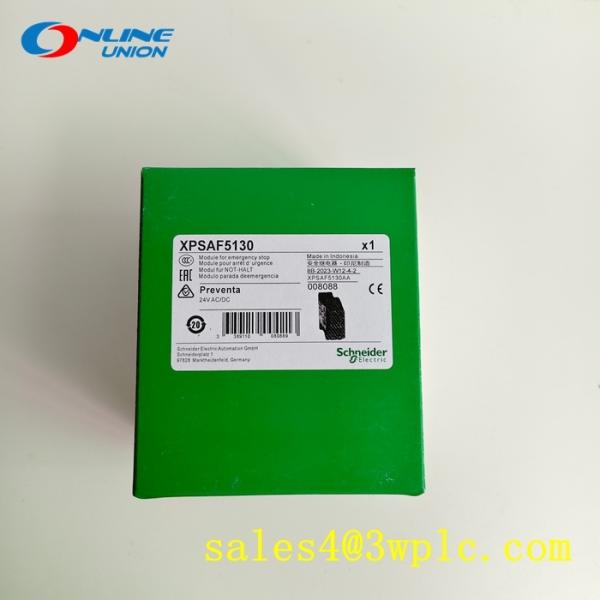

XPSAF5130 Schneider XPS AF Safety Switch/Interlock Safety Relay

Model Number : XPSAF5130

Place of Origin : Frence

MOQ : 1

Price : 1-99$

Payment Terms : T/T

Supply Ability : 999

Delivery Time : in stock / 1-3 work days

Color : Black

Material : Plastic

Compatibility : Schneider Electric products

Cpu Function : Yes, using LED status indicator

Output Voltage : 24V DC

Power Supply : AC 100-240V

Operating Temperature : 0-40°C

Packaging Details : Brand New Original

Contact Now

Schneider XPSAF5130 XPS AF Safety Switch/Interlock Safety Relay:


The Schneider Electric XPSAF5130 is a Preventa safety automation module designed for industrial environments requiring high-reliability safety control. It provides instantaneous circuit disconnection during emergencies, ensuring rapid protection of equipment and personnel. This module is ideal for monitoring emergency stops, safety switches, and light curtains, with a focus on compliance with safety standards (e.g., ISO 13849-1, IEC 62061). Its robust construction and 3 independent normally open (NO) relay circuits enable flexible integration into safety systems.


Technical Specifications:

Parameter Details
Product Series Schneider Electric Preventa XPS AF
Output Type 3PST-NO (3 Form A) instantaneous relay contacts, 1 solid-state output
Control Voltage 24 V AC/DC (±15% tolerance)
Current Rating 1.5 A at 24 V DC (DC-13), 6 A at 24 V AC (AC-15)
Mounting DIN rail (35 mm) with screw terminals
Terminal Type Screw clamp (wire range: 0.14–2.5 mm²)
Safety Certifications UL, CSA, PL e (ISO 13849-1), SILCL 3 (IEC 62061)
Thermal Current 18 A (conventional free air)
Power Consumption ≤5 VA (AC), ≤4 W (DC)
IP Rating IP20 (front), IP40 (rear)
Dimensions (W x H x D) 22.5 mm x 99 mm x 114 mm
Weight 0.25 kg
Operational Temperature -20°C to +60°C
Safety Function Configurable for 1 or 2-channel emergency stop monitoring
Diagnostic Features LED status indicators, forced disconnection test


XPSAF5130 Schneider XPS AF Safety Switch/Interlock Safety Relay

XPSAF5130 Schneider XPS AF Safety Switch/Interlock Safety Relay



Packing & Delivery:


1,100% brand New and Original Factory Seal!


2,Warranty:1 year


3,Package: Original packing with cartons.


4,Delivery time: Shipped in 3-7 days after payment


5,All the goods will be tested before shipment
